sheet metal half-shear button1.This busbar processing machine is mainly to punching press2.Steel plate welded bed,stress annealing treatment after welding, to ensure the rack is not deformed after the long-term used.3.PLC controlling, with digital axis system.Easy to carry out artificial positioning.The machine can be stopped at the time of unmanned operation.5.High flow gear pump,processing with speed,Step speed can reach12 times/min.
The SXC30-550 is the shorter-throat version of the SXC busbar press, for shops punching at 60 mm diameter in material up to 6 mm thick without needing to reach deep into the part. Nominal pressure is 300 kN and throat depth is 550 mm. Control is by PLC with a digital axis system for positioning, and step speed reaches 12 times per minute, with the machine able to stop during unattended operation. As on the larger version, the steel plate welded bed is stress-annealed after welding so the frame does not deform after long-term use. A high-flow gear pump sustains the processing speed.
Values per the model datasheet. Each paragraph is self-contained and states the test condition, the value and the comparison baseline.
Test condition: punching a busbar or panel part that requires reaching past the edge. Value: a 550 mm throat depth at 300 kN nominal pressure. Comparison baseline: the SXC30-750 of the same family, which reaches 750 mm at the same 300 kN. Effect: the shorter machine covers edge and mid-plate work at a smaller footprint, and the choice between the two is made from the actual reach required.
Test condition: punching the maximum diameter in the maximum thickness. Value: up to 60 mm diameter in material up to 6 mm thick. Comparison baseline: hand punches, limited in both diameter and thickness. Effect: large-diameter holes in thin plate are punched in one controlled stroke.
Test condition: repeated punches with the digital axis system engaged. Value: step speed up to 12 times per minute, with the machine able to stop during unattended operation. Comparison baseline: manual press cycle, where throughput depends on the operator and unattended running is impossible. Effect: the punch rate becomes a machine parameter rather than an operator skill.
Test condition: continuous production on a welded steel plate bed. Value: stress annealing after welding, ensuring the frame does not deform after long-term use, on a 300 kN press. Comparison baseline: frames welded without stress relief, which distort over time. Effect: punch and die stay aligned, so the bore stays round over years of production.
It is a hydraulic press for busbar punching, with 300 kN nominal pressure and a 550 mm throat depth.
Up to 60 mm diameter in material up to 6 mm thick.
Both apply 300 kN and punch up to 60 mm in 6 mm material; the difference is throat depth, 550 mm against 750 mm, which sets how far the press can reach into the part.
SXC30-550 hydraulic presses Sheet metal processing machine
Main Features:

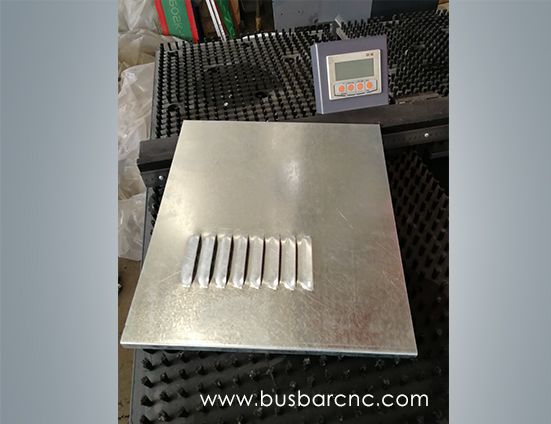

sheet metal half-shear button
1.This busbar processing machine is mainly to punching press
2.Steel plate welded bed,stress annealing treatment after welding, to ensure the rack is not deformed after the long-term used.
3.PLC controlling, with digital axis system.Easy to carry out artificial positioning.The machine can be stopped at the time of unmanned operation.
5.High flow gear pump,processing with speed,Step speed can reach12 times/min.
Nominal Pressure
300KN
Max Processing Diameter
60MM
Max Processing Thickness
6MM
Throat Depth
550MM
