The LJMC-30A combined 3-in-1 machine is the entry point of the portable family, sized for workshops that mostly process bars up to 150 mm wide. It performs punching, cutting and bending with three functions in one bench, on a single-phase 220 V / 50 Hz supply, and it weighs 170 kg. Maximum processing width is 150 mm and maximum thickness 10 mm, with standard dies of ¢10.5, ¢13.8, ¢17 and ¢20.5 mm. A larger version of the same machine covers 200 mm width and 12 mm thickness at 205 kg. Typical application: on-site busbar work, distribution cabinets and repair workshops that value mobility and high throughput.
Values per the model datasheet. Each paragraph is self-contained and states the test condition, the value and the comparison baseline.
Test condition: a direct comparison between the two versions of the LJMC-30A. Value: 150 mm width and 10 mm thickness at 170 kg in the compact version, against 200 mm width and 12 mm thickness at 205 kg in the larger version. Comparison baseline: a fixed-capacity machine, which forces the purchase of a second unit when the busbar size grows. Effect: the version is chosen from the actual working size, for 35 kg of difference.
Test condition: bending a 10 mm busbar in workshop production. Value: 630 kN rated oil pressure in a 170 kg machine. Comparison baseline: a dedicated bench-top hydraulic bending machine, with far greater mass and volume. Effect: the bending force required is available in a machine that can be moved on a pallet truck.
Test condition: transport and storage in the workshop. Value: an outside dimension of 690 × 700 × 1,060 mm with a container size of 760 × 770 × 1,320 mm on the compact version. Comparison baseline: fixed 3-in-1 processing machines packed in large cases. Effect: the machine is stored on a standard pallet and moved without lifting gear.
Test condition: punching the common busbar bolt diameters. Value: standard dies of ¢10.5, ¢13.8, ¢17 and ¢20.5 mm, on a machine with 630 kN rated pressure. Comparison baseline: single-die hydraulic tools used for field repair. Effect: one tool covers the bolt range used across distribution cabinets.
It performs three functions on one bench: punching, cutting and bending of copper and aluminium busbars, on single-phase 220 V / 50 Hz power.
The compact version processes 150 mm × 10 mm and weighs 170 kg; the larger version processes 200 mm × 12 mm and weighs 205 kg.
Distribution cabinet and switch cabinet plants, electrical manufacturing, and on-site construction and maintenance work where a portable 3-in-1 machine is required.
LJMC-30A
Product Information

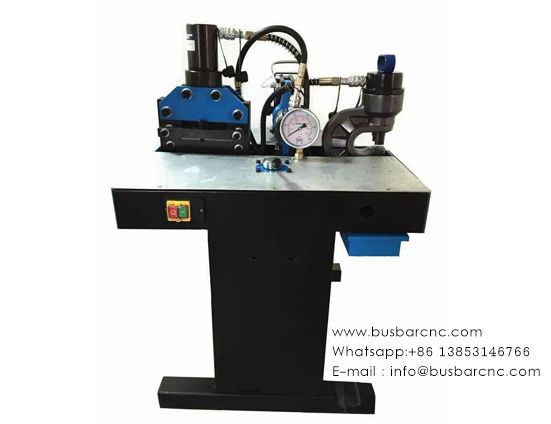

Product Image
Product Introduction
LJMC-30A has three processing units: punching, shearing/cutting and bending. And it's mainly used for processing copper and aluminum busbar in differernt specifications.
]
Product Processing Samples
PUNCHING / CUTTING / BENDING
The max. processing width is 200mm.
The max. processing thickness is 12mm.
Product Application
The machine uses a single-phase 220v ordinary power supply, which can be used in any occasion, such as on-site construction of large workshops, transmission, distribution work, electrical manufacturing plants such as power distribution cabinets and switch canbinets.
High and low voltage switchgear, substation, busway, bridge, electrical switch, communication equipment, household appliances, shipbuilding, office automation equipment, elevator manufacturing, chassis manufacturing and other electrical equipment manufacturing industry. Most suitable for making large electric control box and transmission and distribution construction project construction site use.
Single Processing unit
Company Advantages
Our Factory
We have professional engineers to serve you form the beginning to the end.
We can guarantee the product quality and service quality.
Our Certifications
Our Business Partner
Such ABB, Siemens, Schneider and EDK.
Our Visitors
Our products are sold in more than 100 countries all around the world.
Including the United States, Britain, Germany, Russia, Canada, Belgium, Argentina, New Zealand, Czech Republic, Romania, Ireland, Peru, Chile, Australia, Hungary, Mexico, Slovenia, Malaysia, Brazil, Vietnam, Saudi Arabia, Pakistan, etc.
Due to its superior product performance, powerful functions, stable quality, and timely after-sales service, it has won unanimous praise from customers, also has achieved long-term cooperation and has always maintained friendly contacts.
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 195 |
